From Concept to
Production-Ready Mold
Our mold design engineering workflow bridges product development and volume production. We provide structured engineering across three dedicated phases—from foundational tooling architecture through complete 3D mold assembly, cooling, pocketing, and final procurement BOM deliverables.
Preliminary Mold Design
The preliminary stage establishes the foundational tooling architecture. We define the overall mold size, cavity arrangement, runner and gate locations, mechanism proposals, and core-pin configurations to confirm machine fitment, clamp tonnage suitability, and molding feasibility before heavy machining begins.
Mold Base & Cavity Layout

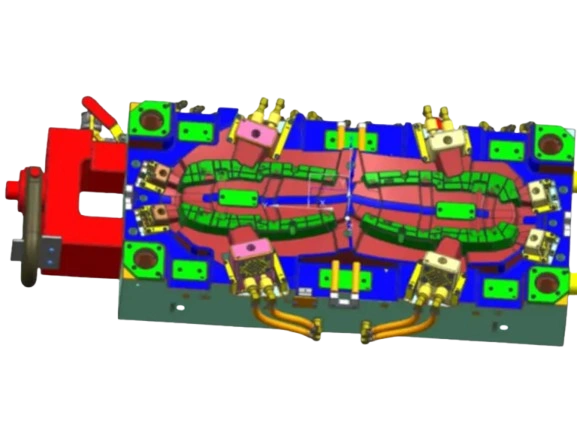

Runner & Mechanism Concept
Integrated Cooling Channels
Lifter & Slide Mechanisms
Intermediate Mold Design
The intermediate stage integrates all internal and external mold operating systems. Rough core and cavity 3D models can be provided to begin CNC roughing and steel ordering while the final fine features are detailed.

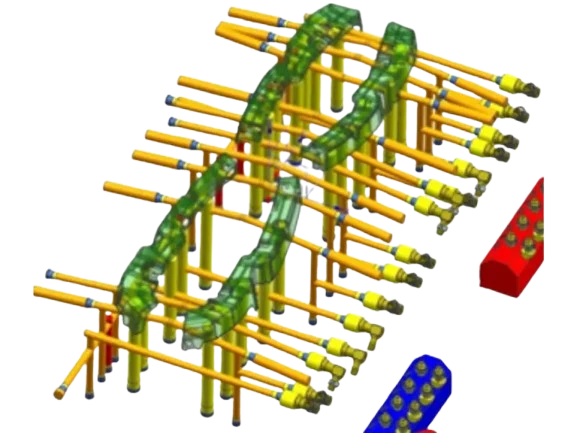

Complete Cooling System Layout
Engineered cooling channels for uniform thermal distribution, minimized hot spots, and reduced cycle time.
Full Ejection System Components
Detailed ejector pins, sleeves, blade ejectors, and return pins designed for balanced and clean part release.
External Mold Mechanism Integration
Comprehensive integration of side actions, angle pins, slides, hydraulic cylinders, and lifters.
Initial BOM Release for Procurement
Preliminary Bill of Materials enabling early steel block procurement, standard component ordering, and machining start.
Final Mold Design & Complete BOM
The final mold design stage delivers a fully resolved, production-ready engineering package encompassing all critical details required for manufacturing sign-off and shop-floor machining.
Full 3D Mold Assembly & Pocketing
Final Bill of Materials (BOM) & 2D Drawings
Venting Details & Surface Relief Features
Precise vent placement, depth specifications, and surface relief geometry to eliminate air traps, burns, and ensure clean part ejection.
Complete 3D Design with Pocketing
Fully detailed core and cavity 3D models including all pocketing, insert seats, water manifold routing, and component interfaces.

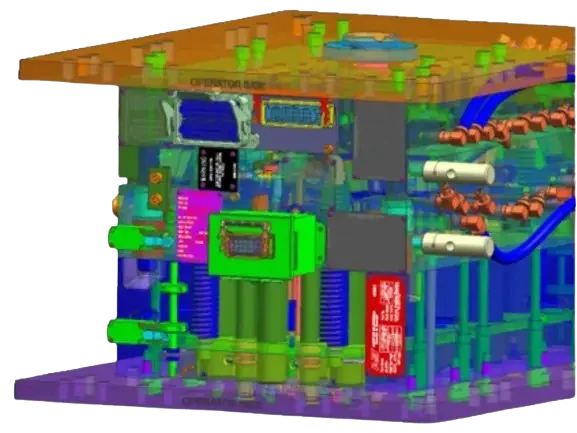

Final Bill of Materials (BOM)
Comprehensive component listing covering all mold elements, standard parts (Hasco/DME/Misumi), and custom components with supplier references.
Assembly 2D Drawings
Full dimensioned 2D assembly drawings available upon request, supporting shop floor toolroom manufacturing and quality inspection.
Manufacturing-Ready Mold Engineering
Ready to Elevate Your
Mold Design & Simulation?
Partner with our expert engineers to validate part feasibility, optimize cycle times with conformal cooling, and receive production-ready mold designs.
